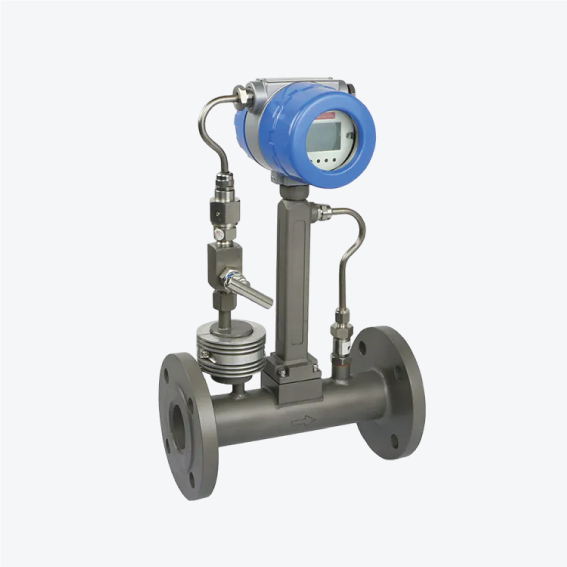

Vortex Flow Meter, KWIVF Series

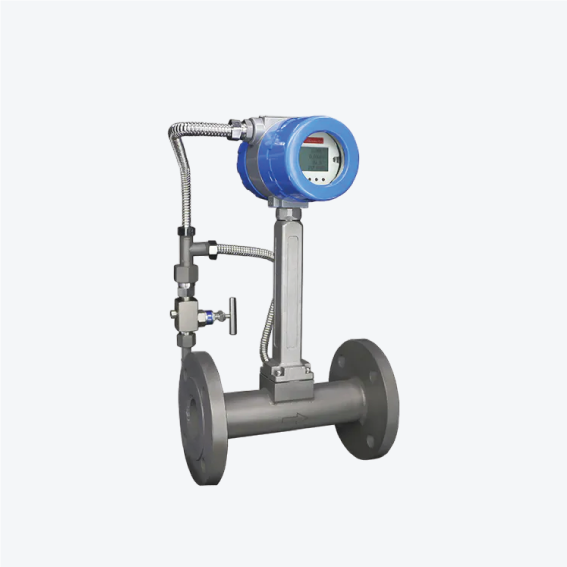

Vortex Flow Meter, KWIVF Series - Image 2

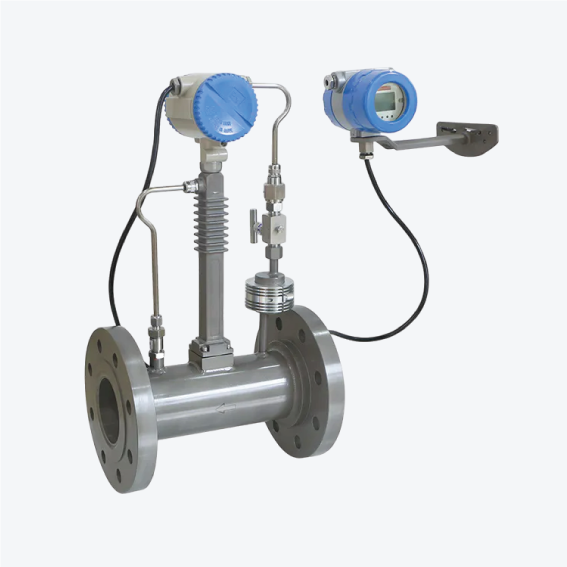

Vortex Flow Meter, KWIVF Series - Image 3

Vortex Flow Meter, KWIVF Series

The vortex flowmeter is used for measuring the flow velocity of gases or liquids in pipelines flowing full. The measuring principle is based on the development of a Karman vortex shedding street in the wake of a body built into the pipeline.

The periodic shedding of eddies occurs first from one side and then from the other side of a bluff body (vortex-shedding body) in stalled perpendicular to the pipe axis. Vortex shedding generates a so-called “Karman vortex street” with alternating pressure conditions whose frequency is proportional to the flow velocity.

Category:

Description

Features

  • No moving parts inside, easy installation and maintenance
  • Digital filter amplifier with wider measurement range and better anti-interference performance
  • Wide flow ratio up to 33 : 1
  • High Accuracy up to ± 0.2% optionally
  • Max temperature up to + 420 °C
  • Inline and Insertion type for option
  • Integrated and remote transmitter for option
  • Power-off record function
  • CE and calibration certificate
  • The remote type supports pressure and temperature compensation

Application

  • Boiler Industry (Steam Measure)
  • Compressed Air Industry
  • Textile Industry
  • Paper Industry
  • Heating Industry
  • Metallurgical Industry
  • Plastics Processing
